DJI E600 6 Axis Tuned Propulsion System for Multirotors
The E series tuned propulsion system is the first power solution of its kind for the multirotor industry. It brings greater aerodynamic efficiency and higher thrust-weight ratio, while increasing reliability, stability and agility.
With the state of the art areodynamic efficiency and only nearly half of the inertia product of the normal 12*3.8″ rotor, the 12*4.2″ rotor offers you an outstanding flight experience. The rotors are carefully balanced dynamically, you will never be bothered by jello effect from your airborne rolling shutter camera. The low inertial design enables your flight controller to use a much higher gain value to achieve a higher stability and maneuverability all at once.
From magnets to steel, from copper wire to bearing we only use the best materials to make the best products. Improved mass production techniques, along with our scientific quality control systems, lowers costs and ensures that our products are more accessible to users. Our new self-tightening mechanism dramatically reduces any chance of loosening rotor or mistakenly installed rotors. Tool-free mounting and dismounting makes storage and transportation much easier.

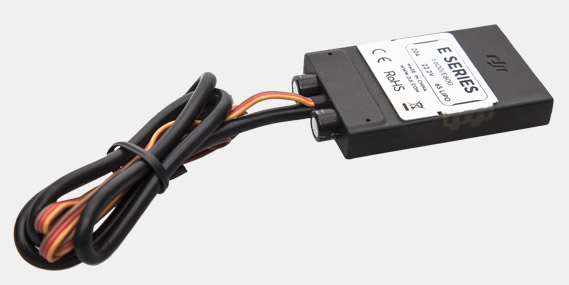

20A ESC Injection molded
New in-mold injection technology makes the 20A ESC more robust and water resistant. Highly efficient, quick response algorithms provide drastic optimization of both your motors and propellers, and give you enhanced maneuverability and stability in wind or during descent. A new coaxial-cable design provides a calm electromagnetic environment for the airborne sensors. Furthermore, the 20A ESC brings a 6S high voltage power system to middle-sized multirotors, enabling a much higher electrical efficiency and greater durability.
|Recommended Load||300 g/axis||600 g/axis|
|Maximum Thrust||600 g/axis||1600 g/axis|
|Working Temperature||-5 °C ~ 40 °C||-5 °C ~ 40 °C|
|Recommended Battery||3S LiPo||6S LiPo|
|Units Per Package||Quad or Hexa||Quad or Hexa|
|Current||15 A OPTO||20 A OPTO|
|Signal Frequency||30 Hz~450 Hz||30 Hz~450 Hz|
|Voltage||11.1 V~14.8 V||14.8 V~25.2 V|
|Battery||3S~4S LiPo||4S~6S LiPo|
|Stator Size||22×12 mm||35×8 mm|
|KV||920 rpm/V||415 rpm/V|
|Weight||50 g||90 g|
|Diameter /Thread Pitch||24×11 cm 9.4×4.3 inch||31×11 cm 12×4.2 inch|
