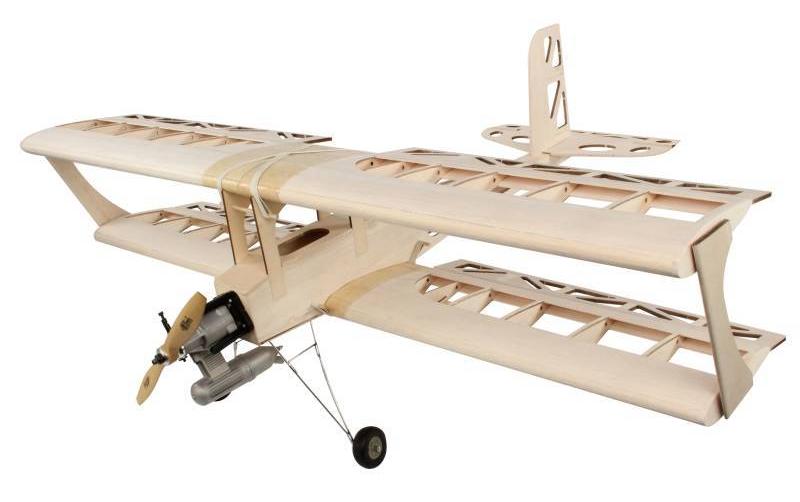

JP Panic Kit

Sale
£98.99
RRP £109.99Save £11.00

- +

Not available in store Available to order online
delivery

FREE SHIPPING,On Orders Over £99.99

See terms & conditions*


DETAILS:

Because having fun never goes out of fashion.  The iconic and historic aerobatic biplane reinvigorated.

FEATURES:

  • A true all-time classic
  • Traditional ‘quick-build’ kit
  • Lightweight, high quality balsa and plywood construction
  • Laser-cut parts including ribs, lightening holes and wing sheeting cut to size
  • Simplified interlocking wing construction
  • One-piece pre-lightened tail surfaces
  • Pre-formed wire undercarriage
  • Suits a wide range of engine sizes
  • Easily converted for electric power

WHATS IN THE BOX:

  • Laser-cut balsa and plywood parts
  • Wire undercarriage parts ready for soldering
  • Saddle clamps and screws for undercarriage
  • 8x Wing tip 19mm press studs
  • 1x Engine mount
  • 1x Full instruction manual

REQUIRED TO COMPLETE:

  • 1x 61 - 90 Glow engine or electric equivalent
  • 23x Polyester hinges
  • 1x Double control horn (rudder)
  • 3x Single control horns (ailerons, elevator)
  • Ball links and rod for upper aileron connection
  • Standard size servos, 5 minimum.
  • Closed loop system for rudder
  • Elevator push rod
  • Aileron push rods
  • Throttle push rod
  • Covering (recommended Oracover)
  • Fuel tank (8oz Minimum)
  • 2x 2 1/2in Wheels
  • 4x Wheel collets 10SWG
  • 2 x Glass fibre bandages for joing the wings

SPECIFICATIONS:

  • Weight 2400g 84.66oz
  • Shipping Weight 1.83kg 4.04lbs
  • Product Length 970mm 38.19in
  • Product Wingspan 1,220mm 48.03in
  • Product Wing Area 63dm2 971.39in2
