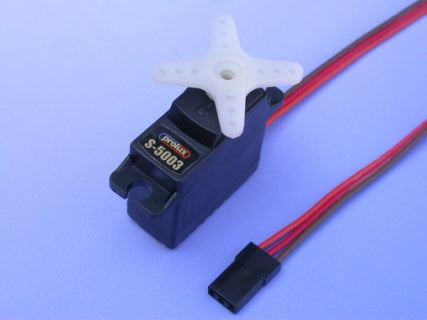

Prolux Micro Standard Servo (Futaba)

DETAILS:

• One 5003 Servo
• One cross type servo horn (installed on servo)
• One straight servo horn
• 2 rectangular rubber grommets
• 2 mounting screws
• 2 eyelets

SPECIFICATIONS:

• Operating Voltage : 4.8 Volts

Volts    Torque (kg./cm)    Speed (Sec/60 Deg. at no load)
 4.8V             2.50                      0.22
 6.0V             3.00                      0.20

• Operating Temperature Range : 0 to +70 Degree C
• Operating Angle : +-45 Deg.
• Gear Type : Plastic Gears
• Motor Type : Cored Motor
• Dimensions : W13.4 x L28.2 x H30 (mm)
• Weight : 0.57oz. (17g)
